The Seattle Cycles Burke 20 Electric is a bike with more go than most. It’s both a 20-inch wheel folding bike, and an e-assist bike, and it’s small and light enough that Seattle Bike’s founder Dr. Mike Yap claims it is the lightest airline-legal e-bike in the world.

Seattle Cycles may be a less established brand, but it's turning to some blue-chip cycling companies for inspiration and help. The folding system and procedure appears almost identical to Brompton’s, and the titanium frame is built by the knowledgable hands at Lynskey Performance.We saw it at CES 2017 in Las Vegas.

The e-assist is provided by a 300-watt front hub motor, which is powered by a 100 watt-hour battery. According to Yap, this is largest battery airlines allow aboard, although there isn’t a restriction on the number of 100 watt-hour batteries a traveler can check. Two of the batteries are included with purchase, which may be connected to provide a total range of 20 to 30 miles, says Yap.

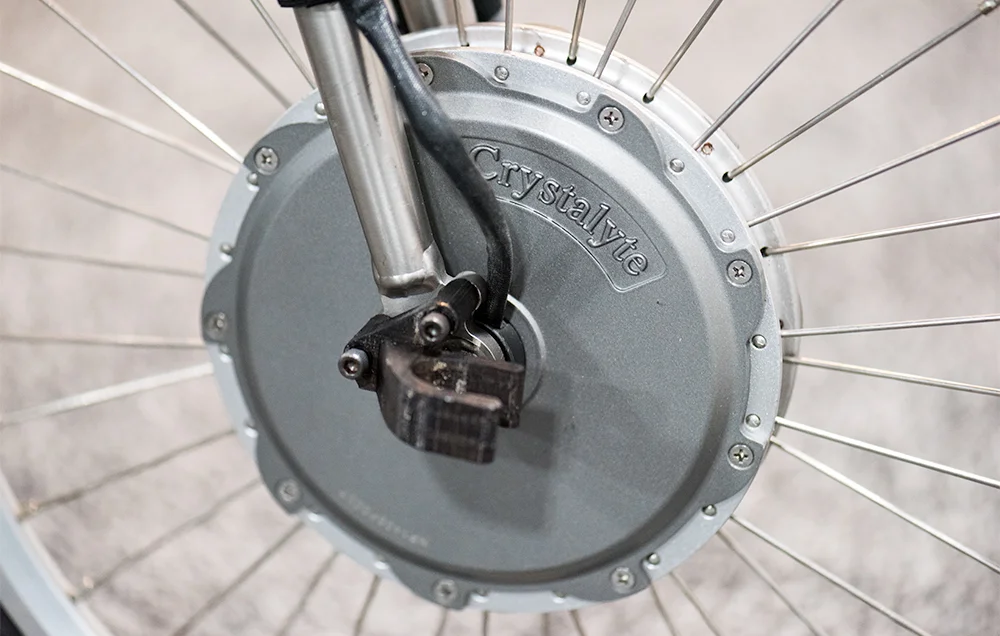

 The bike's electronic assist is powered by a 300-watt front hub motor.

The Burke 20 can be folded—no tools or disassembly required—to fit it into a 29-inch airline-friendly case. Yap claims the Burke 20 E can be folded and packed in one minute; based on personal experience with folding bikes, I’d say this could be accurate, but not without some practice. Pedals are the one potential hitch: The bike I viewed had quick-release flat pedals, but if you use your preferred clipless pedal system, you’ll need to wrench those off before packing it in the case.

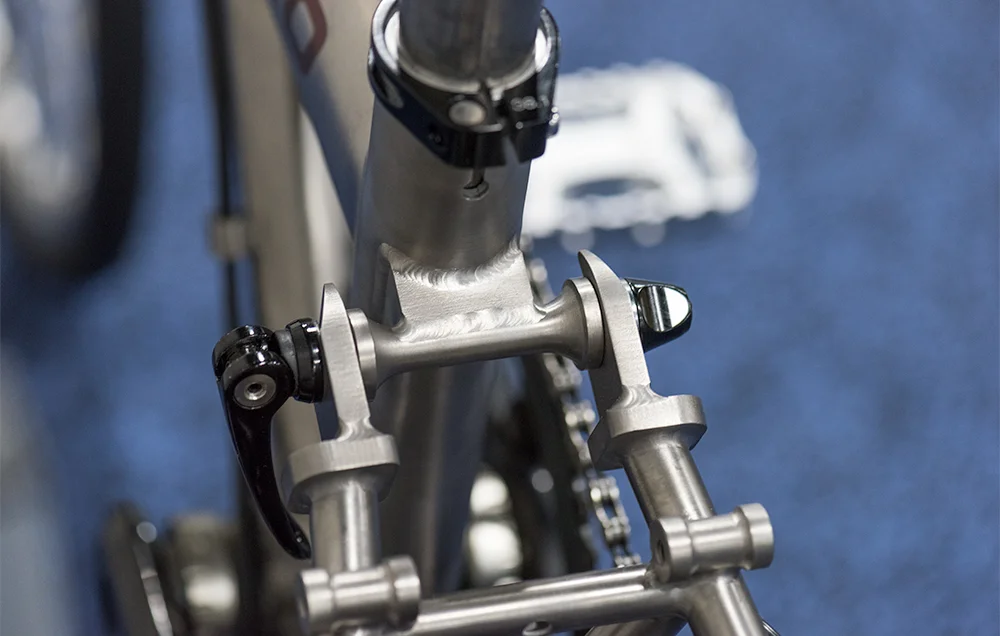

 The company claims that the bike can be folded with no tools in one minute, which seems plausible.

Overweight charges shouldn’t be a concern: Yap claims the Burke 20 Electric weighs 29.5 pounds, which seems plausible given the small wheels, titanium frame, and high-end drivetrain.

The Burke 20 Electric sells for $10,000 as shown with SRAM XX1 drivetrain; a suitcase is included. The frame has a 110kg rider weight limit, and lifetime warranty. Acknowledging the high price, Yap stated he is exploring ways to offer the Burke 20 Electric’s features at a lower price.

Seattle Cycles also offers a non-assist version of the Burke 20 as well as the 16-inch wheel Burke 16 folding bike and the Burke 8 micro-folder with eight-inch wheels. All models use titanium frames.



Original article from Bicycling Magazine

Comment

New: Burke 20E

New: Burke 20E

A new concept in travel lifestyle and personal mobility. Now a traveler can take a personal electric vehicle by plane to any city for business or pleasure.

The Burke 20E is a very high performance bicycle with electric assist that extends the range and power of the cyclist. Perfect for exploring new cities or for personal transportation.

The Burke 20E is airline transportable with no extra charges or required approvals!

  1. It folds without disassembly and packs into standard 29” suitcase (meeting airline sizing requirements) in about 1 minute. Many airlines impose very high extra charges each way for oversized bicycle cartons.

  2. Its full titanium frame and high performance parts make for a very lightweight e- bike, weighing about 29 lb. Most airlines have a 50-lb limit on checked luggage, hence prohibiting shipping of most bikes without extra charges.

  3. It uses quick-release battery modules that comply with FAA regulations for inclusion in carry-on baggage. In general, electric bikes, scooters and hoverboards are not allowed in checked baggage on commercial flights.

Burke 20E Specifications:

  • Full titanium frame set; Made in USA

  • 20-inch (ISO 406 ) wheels

  • Patented 1-minute suitcase fit design

  • Rear wheel w/ SRAM XX1 11-speed 10-42T cassette

  • SRAM FORCE 1 crankset w/ 54T chainring

  • Front wheel w/ 300 W high-speed hub motor

  • Modular 2 x 100 Wh lithium batteries w/ Panasonic cells

  • Range of 20-30 miles with electric power assist and regenerative energy functions

  • 29 lb weight

  • Airline transportable without extra charges or required special approval
